Technical Data

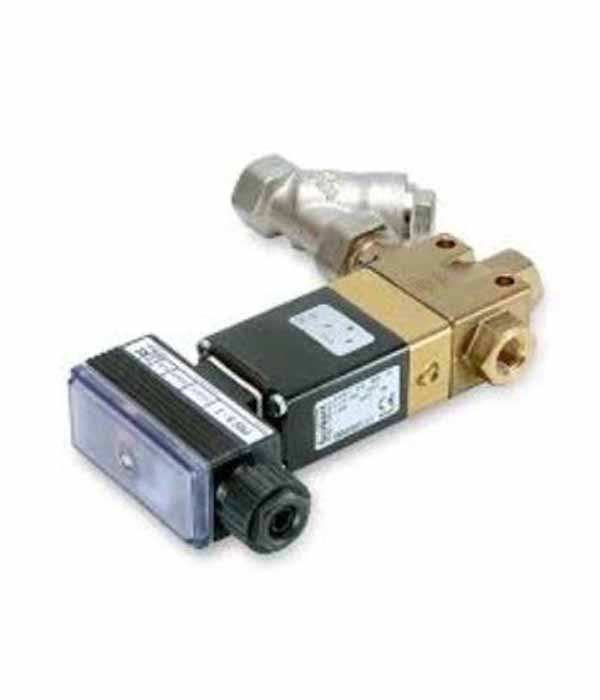

Cycling Timer PRS 8
Interval time toff (blowdown interval) Adjustable within a range of 0.5 h to 10 h
Pulse duration ton (blowdown duration) Adjustable within a range of 0.5 s to 10 s
Indicators
One LED mains supply One LED pulse duration
Supply voltage
115 V – 230 V, 50 – 60 Hz or 24 V DC
Protection
IP 65
Permissible ambient temperature
0 °C to 60 °C
Cable entry
PG cable gland for 0.6 to 7 mm cable
Approx. weight
60 g
Three-Way Solenoid Valve 340 C
Connection
1⁄4″, EN ISO 228-1
Max. service pressure
16 barg (230 psig)
Min. differential pressure required for opening and closing
0.5 bar (7.2 psi)
Duty cycle
100 %
Position of installation
as required
Code letters for connections
P = Pressure connection A = Valve outlet
R = Exhaust or drain outlet
Supply voltage
115 V, 50 Hz, 15 VA, in rush 30 VA or
230 V, 50 Hz, 15 VA, in rush 30 VA or optional
24 V DC 8 W
Protection
IP 65
Maximum permissible ambient temperature
55 °C
Approx. weight
0.9 kg
StrainerConnection
1⁄2″, EN ISO 228-1
Material
Body: gun metal RG 5
Filter cartridge: austenitic stainless steel 1.4571
Mesh size
0.5 mm
Approx. weight
0.3 kg
