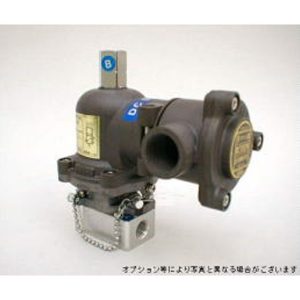

Van điện từ 3 ngã Kaneko (Three-way Solenoid Valve)
Summary
There are three places that connection port, and the three-way solenoid valve has a valve seat in the valve in two places. Always one of the valve seat portion is open, the other valve seat is closed now.
Three-way solenoid valve, which is used to control the air for the opening and closing operation of the machine, such as single-acting cylinder or diaphragm normal operation, you can also be used to direct control of the liquid.
Series
M00U Series
FLUID
CLEAN AIR
FLUID TEMPERATURE
－20～60℃
AMBIENT TEMPERATURE
－20～60℃
DUTY CYCLE
100% CONTINUOUSLY RATED
OPERATING VOLTAGE RANGE
＋10，－15％
M00DU Series
FLUID
CLEAN AIR
FLUID TEMPERATURE
－20～60℃
AMBIENT TEMPERATURE
－20～60℃
DUTY CYCLE
100% CONTINUOUSLY RATED
OPERATING VOLTAGE RANGE
＋10，－15％
M50 Series
FLUID
CLEAN AIR
FLUID TEMPERATURE
-20 – 60 deg.C
AMBIENT TEMPERATURE
-20 – 60 deg.C
DUTY CYCLE
100% CONTINUOUSLY RATED
OPERATING VOLTAGE RANGE
+10，-15％
WORKING PRESSURE
0 ～ 0.99MPa
Cv. FLOW FACTOR
0.18
M55 Series
FLUID
CLEAN AIR
FLUID TEMPERATURE
－20 ～ 60℃
AMBIENT TEMPERATURE
－20 ～ 60℃
DUTY CYCLE
100% CONTINUOUSLY RATED
OPERATING VOLTAGE RANGE
＋10、－15％
WORKING PRESSURE
0.12 ～ 0.99MPa
